Fire Ball Extinguisher

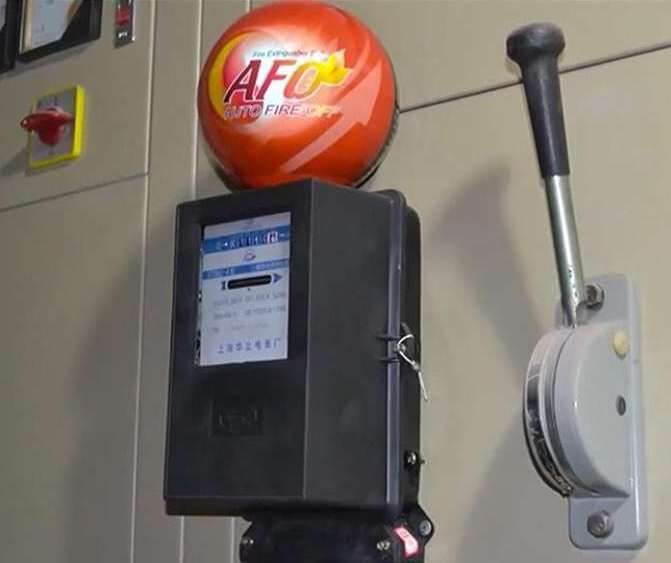

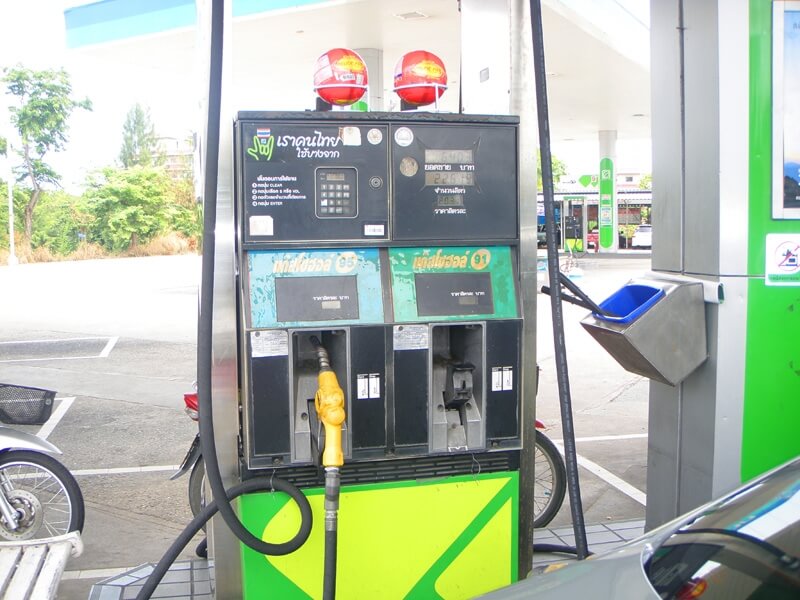

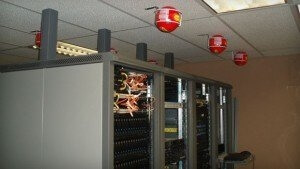

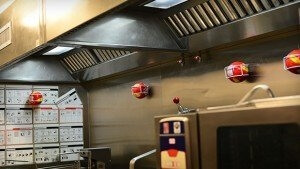

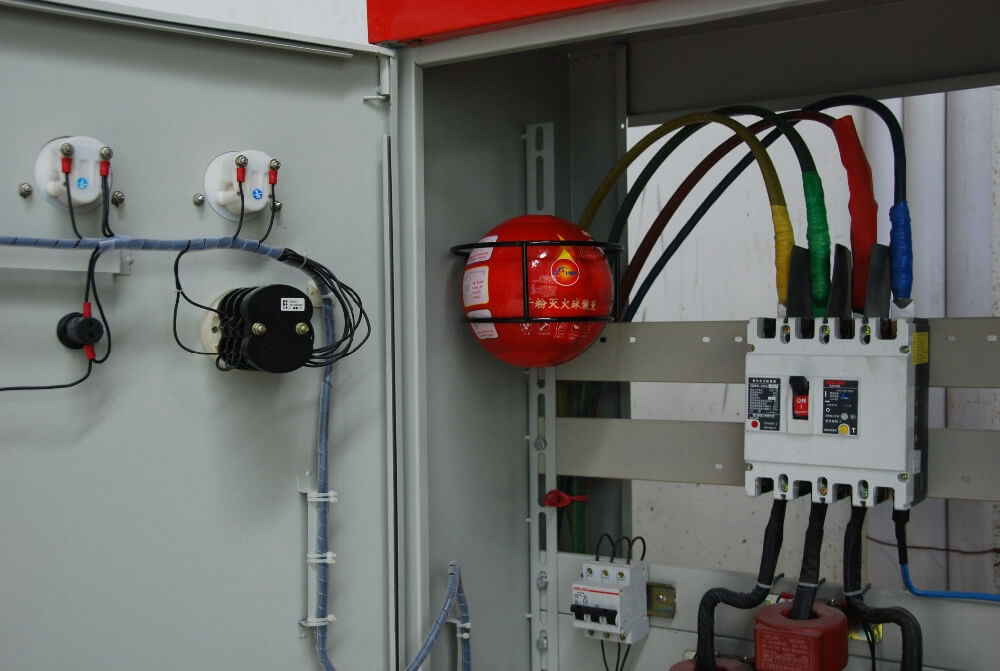

Fire Extinguisher Ball is a fully automatic fire extinguisher. When thrown or rolled into fire, it will burst and extinguish the fire immediately. You can also place it where the hotspots are such as flammable objects, circuit breaker box, gas tank etc.

In case of fire, it will put out the fire by itself thus guarding lives and property.

Technical Characteristics

MediumDry Powder (Mono Ammonium Phosphate)Activation Time3 secondsCoverage Area8-10 m2Activation TriggerFlameWeight1.3 kgWarning Audio120 BDiameter147 mmFire TypesClasses A (solids) B (liquids) C (gasses) E (electrical)

Advantages of Fire Ball

1. Fast Response

2. The ultra-efficient fire stopping powder ball is the fastest way to stop any fire. Just throw the ball and it will activate itself in just 3 seconds and stop the fire.

3. Automatic Activation

4. When a fire occurs and nobody is present or not it has the possibility of call the fire brigade, elide Fire Ball can be of amazing help. With its one-of-a-kind fire stopping automatic activation all you need to do is throw the ball safely from your standing point.

5. Distance Safe

6. Safe, there is NO need to move closer to fire, toss it from a distance and let the Ball do the work. .

7. Human & Environmental Friendly

8. Not toxic for humans and the environment

9. No Training

10. NO special training or skills required.

11. Zero Maintenance

12. It does not require inspection and maintenance. It has 5 years waranty.

13. Easy to Handle

14. The fire extinguishing ball is lightweight, weighing more or less than 1.5 kg, also great for women, children and the elderly. Anyone can react and use it fast!

Disadvantages of Fire Ball

1. Limited coverage area

2. Single Fire Ball would nto be effective in large rooms, as well as in the open air. Solution: Proper planning and installation of numerious Balls at certain distance from each other as per OEM recommendation

3. Coverage limitations

4. Can cover only certain fire source whereas extinguishers can be directed in different directions

5. Accessability

6. Personnel attempting fire fighting might not be able to access the Ball installed behind the fire point, in contrast to fire extinguishers that are typically installed at the access points to the hazardous zone.

7. Late activation

8. It will be activated only when the fire evolves, temperature rises, flames engulf the whole area reaching the ball.This might cause loss of asset.

Draft Title

• TitleConventional Fire ExtinguishersFire Extinguishing BallTraining requirementRequiredNot requiredFire classificationExtinguishers are selected as per class of fireSame caters class A,B,C,E firesWeightDomestic 2-7 kg

• industrial 5-9 kg

1.3 kgOperating distance2 m from fireNo distance restriction – it can be tossed from safe distanceMaintenancesRegular inspection & maintenance requiredNo maintenance required for 5 yearsRefillingRequiredNot requiredOperation methodManualSelf-ActivatedExtinguishing timeCan takes average 2-10 minutes3-10 sec. as soon as comes in contact with flame, the extinguisher ball automatically explodesCoverage areaDepends on the

• size of the extinguisher;

• fire intensity;

• user proficiency

5 kg cylinder finishes within 18-20 sec.

• 360o coverage

• Single ball can cover area of 8 -10 m2

• Failure chancesBody Rust;

• Nozzle chocked;

• powder settles;

• cover explodes towards user

Failure chances are NILEnvironmental concernsPowder could be made from CFC (ozone depleting substance) or other (non-toxic) materialsFree of CFCPossibility of theftThere is a possibility of theft due scrap valueDoesn’t have any scrap valueSpace requiredMinimum 2ft x 6 in areaonly 6 inch x 6 inch area


Gallery
