Flood Prevention – NOAQ Boxwall

NOAQ Boxwall is a freestanding temporary flood barrier designed for fast response to flood threats in an urban environment, on hard and even surfaces like tarmac, paving and concrete.

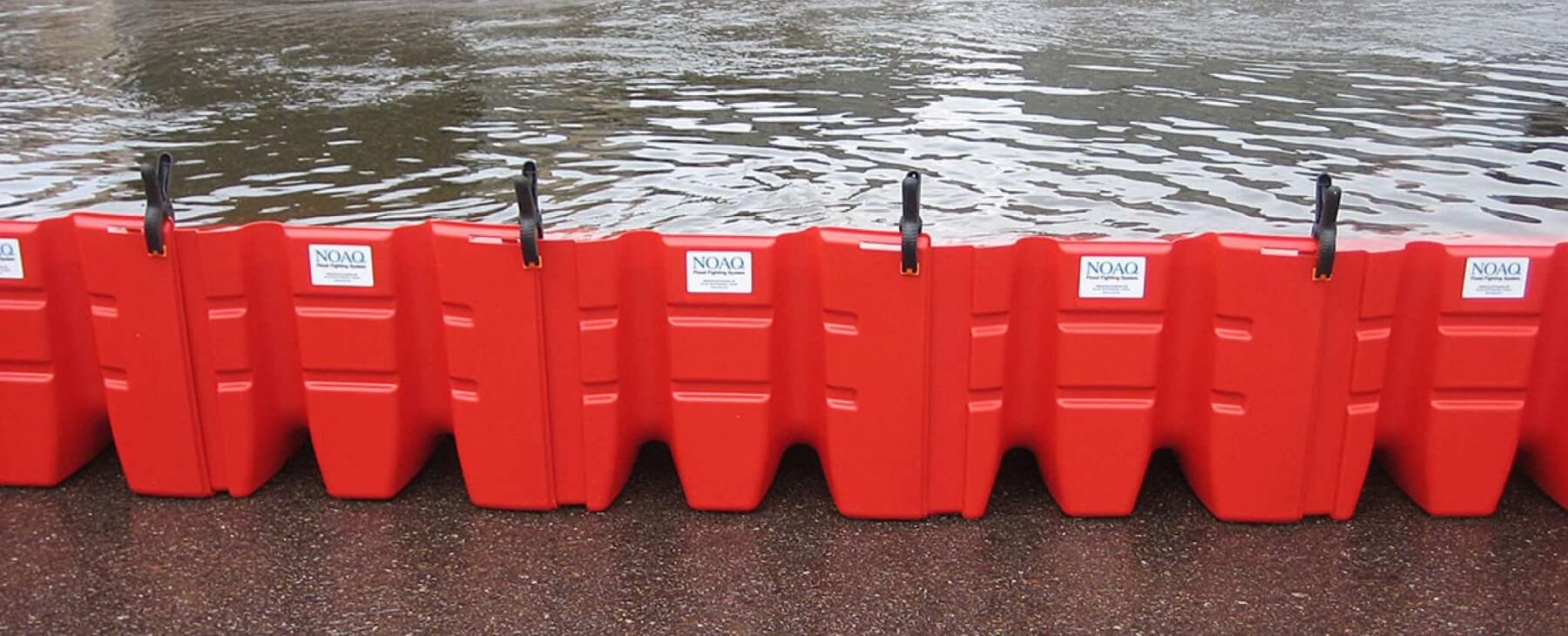

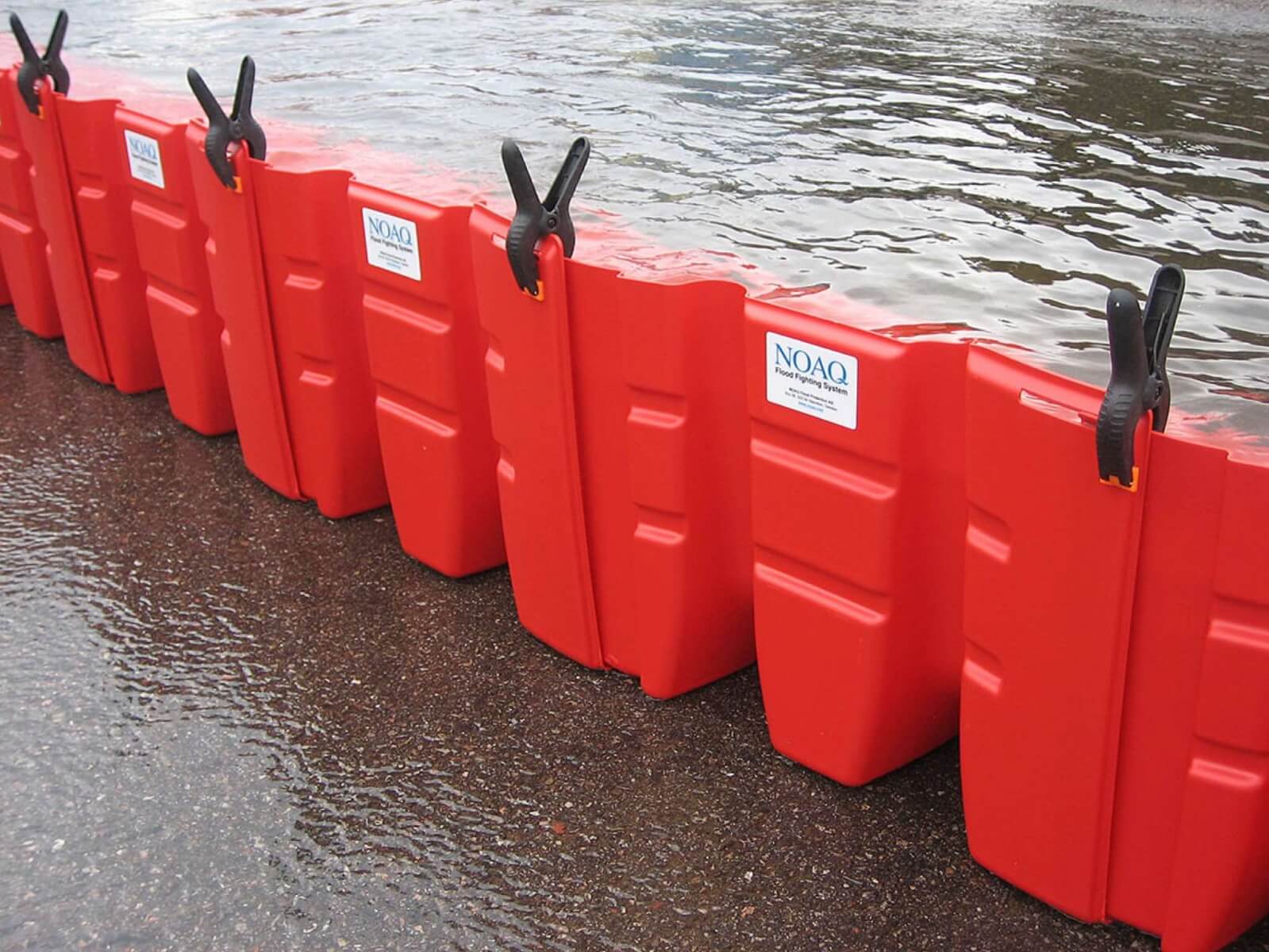

The NOAQ Boxwall is able to dam 0.5m of water and is extremely lightweight and easy to deploy. Although the weight of each box section is light, at only 3.4kg, the Boxwall stands firm without any external fastening, even when damming water to its full height. The Boxwall flood barrier is anchored by the weight of the flood water itself.

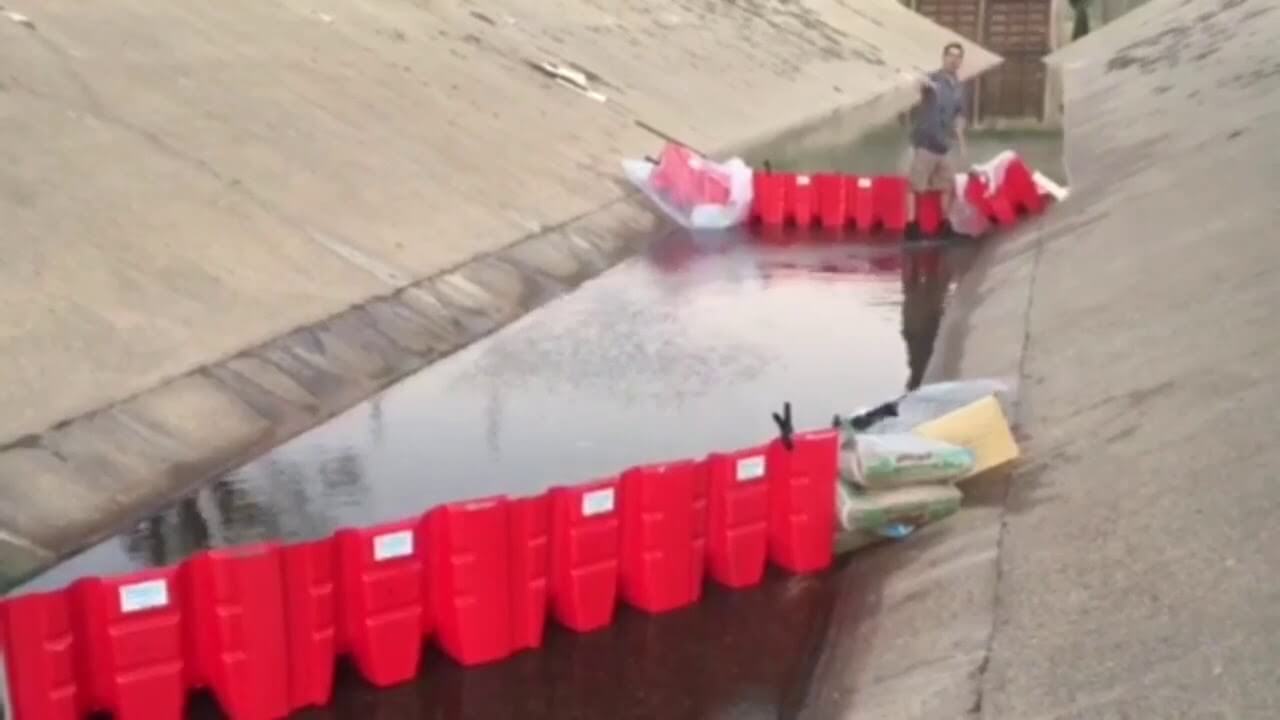

The Boxwall is particularly useful during flash flooding to control fast flowing water, diverting it away from vulnerable entrances. The Boxwall sections simple stick with the asphalt and divert the water.

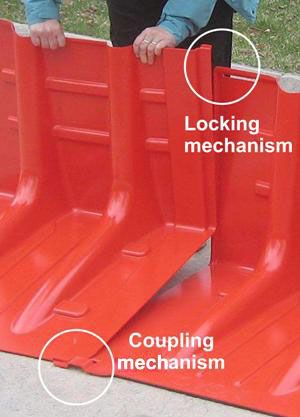

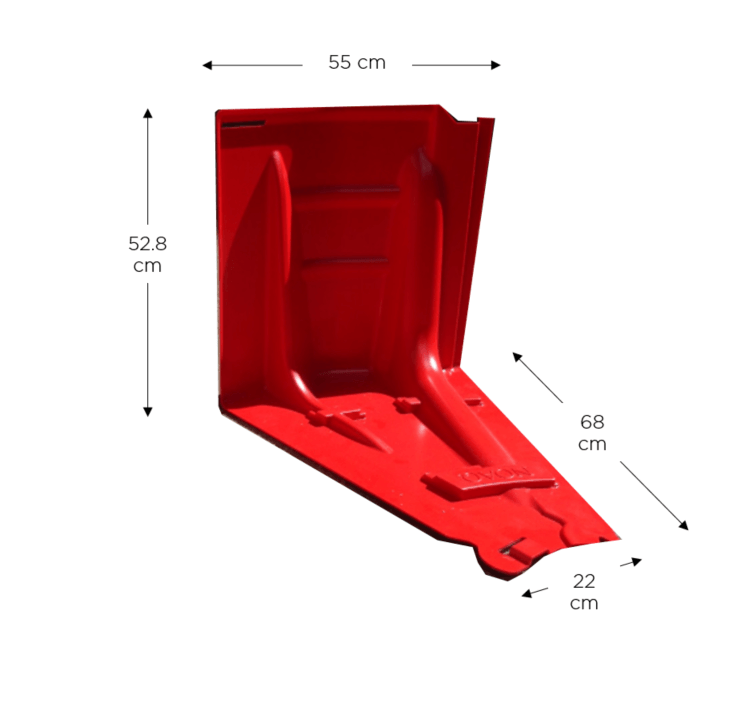

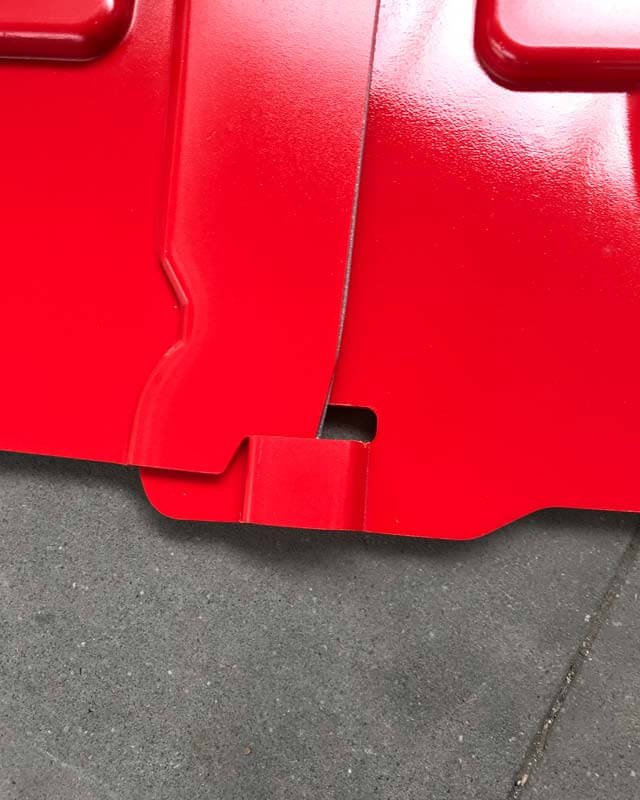

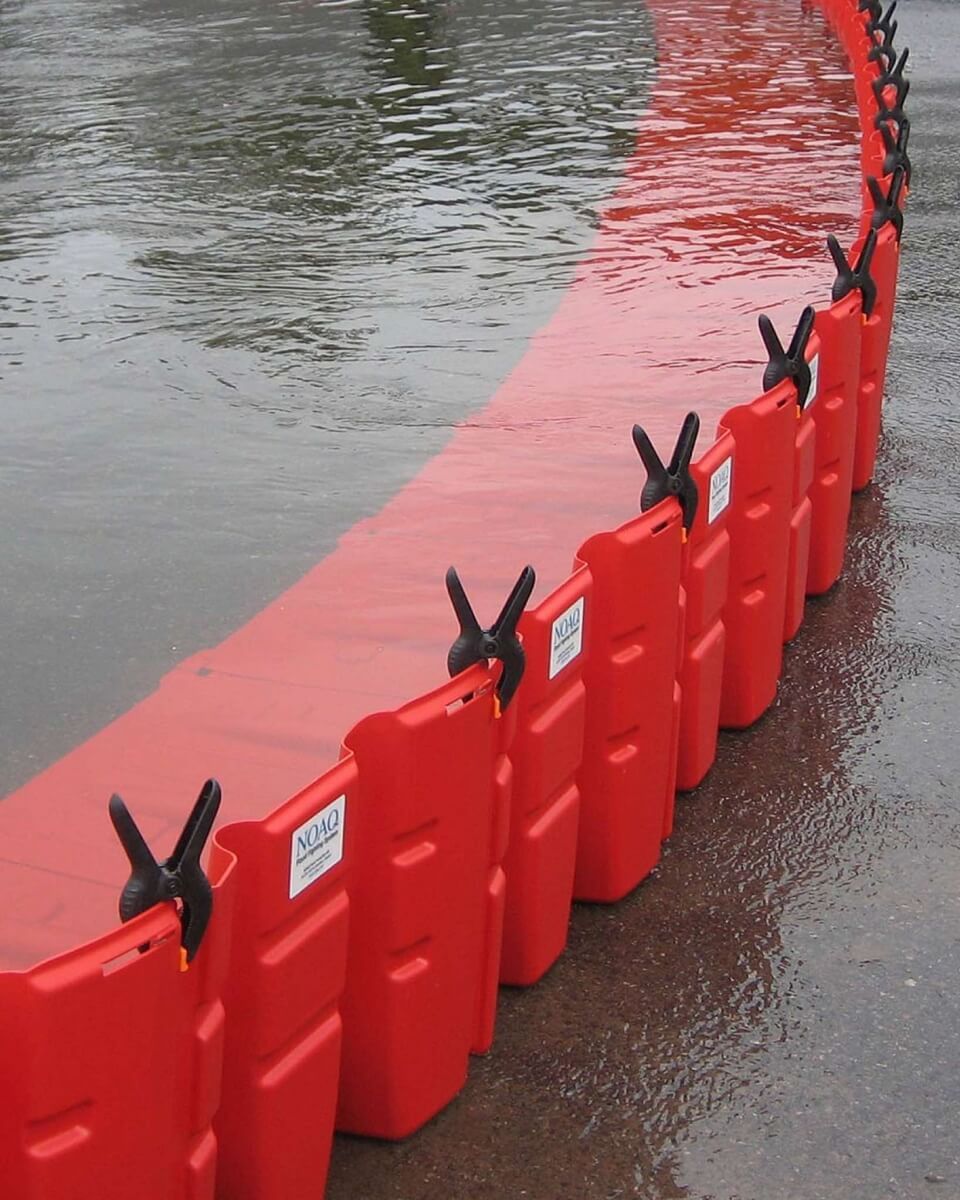

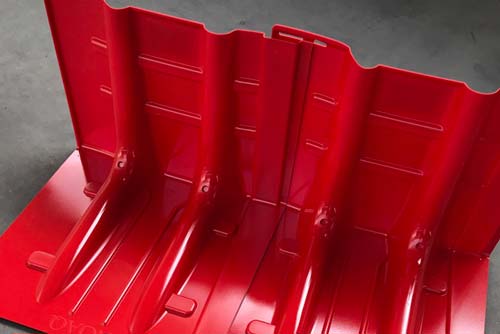

The Boxwall is built up by slotting together any number of box sections. The flexible ± 3° coupling makes it possible to create curves, but it is also possible to make corners using a bespoke corner piece.

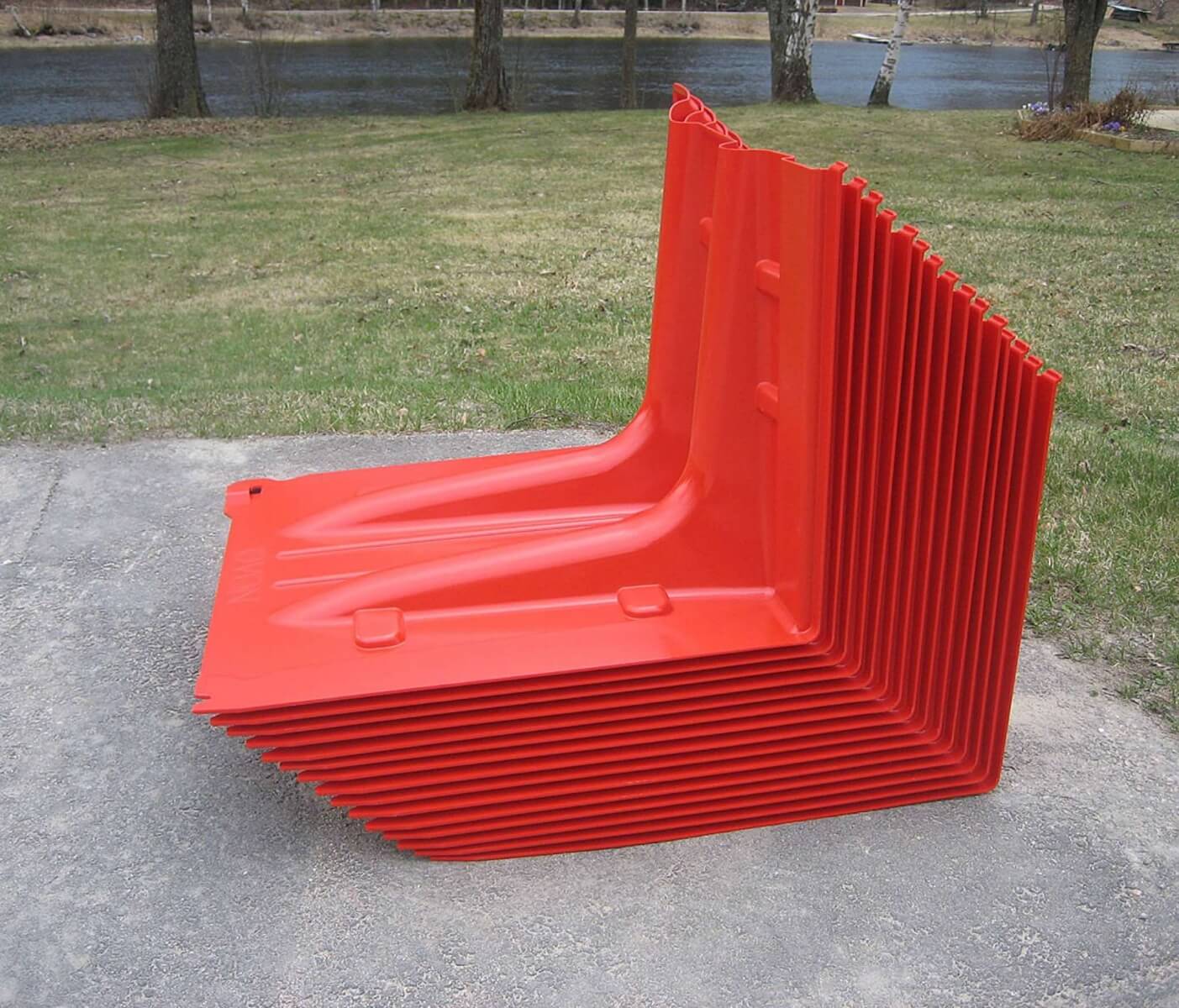

After the flood, the Boxwall is easily dismantled and can be cleaned using a garden hose. The box sections are stackable, which means they require very little space to store and are easy to transport.

Fast deployment, lightweight flood barrier for quick response flood protection in urban areas – unlimited length up to 0.5m high.

Specs

Title/Data
Damming ability: 50 cm (20’’)
Dimension of boxes (lxwxh): 705 x 680 x 528 mm
Effective length: 625 mm (2’) per box
Weight: 3.4 kg (7.5 lb) per box
Speed of deployment Ca: 200 m (220 yd) per hour
Minimum curve radius: 1.0 m (in both directions)
Material: ABS
Temperature resistance:  -30° – +90°C

Storage and Transportation

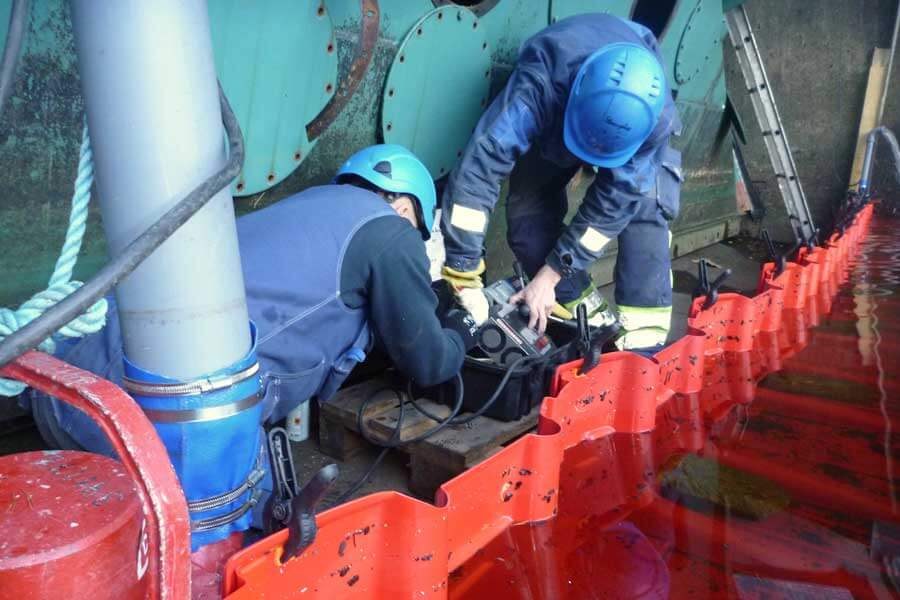

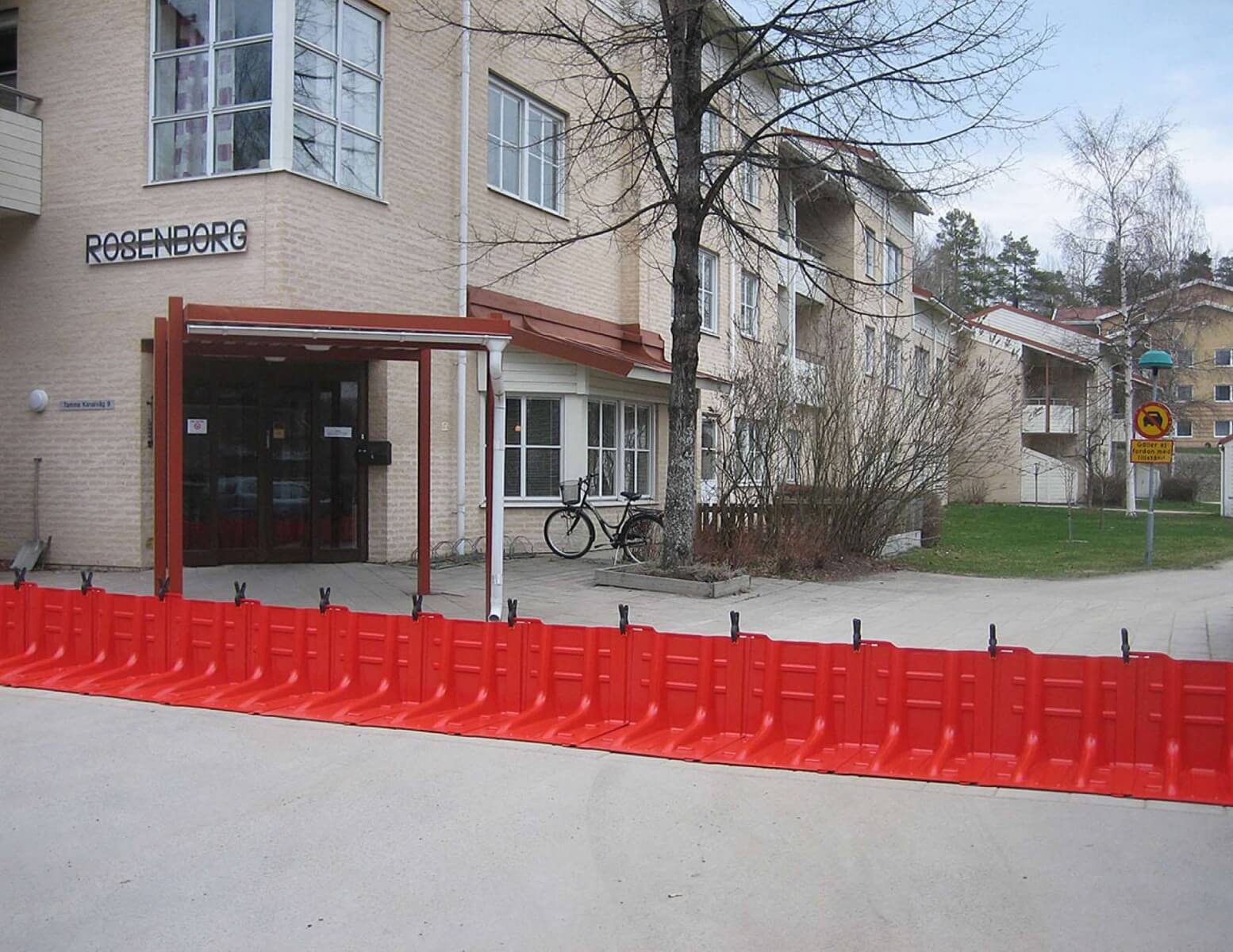

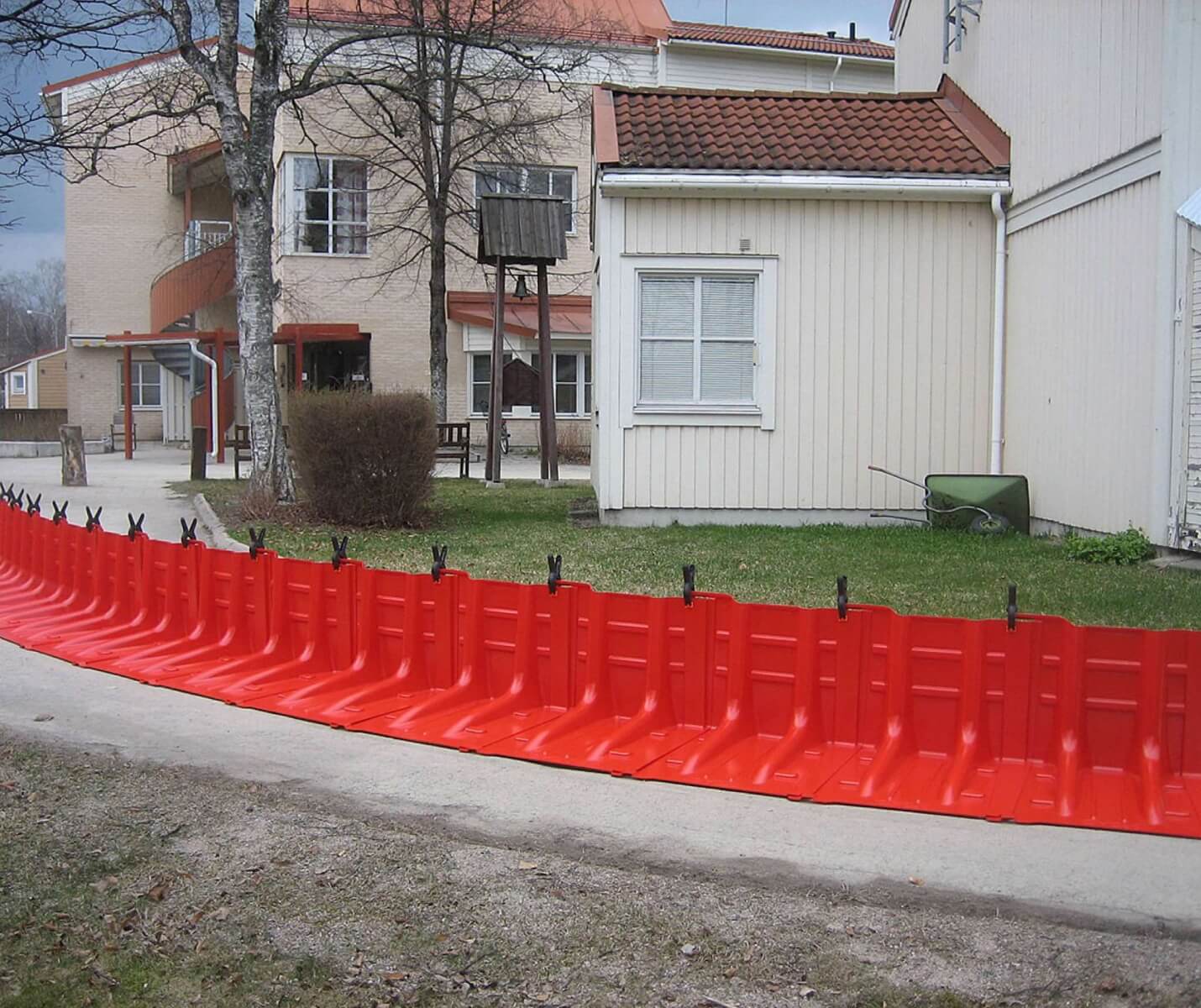

Application

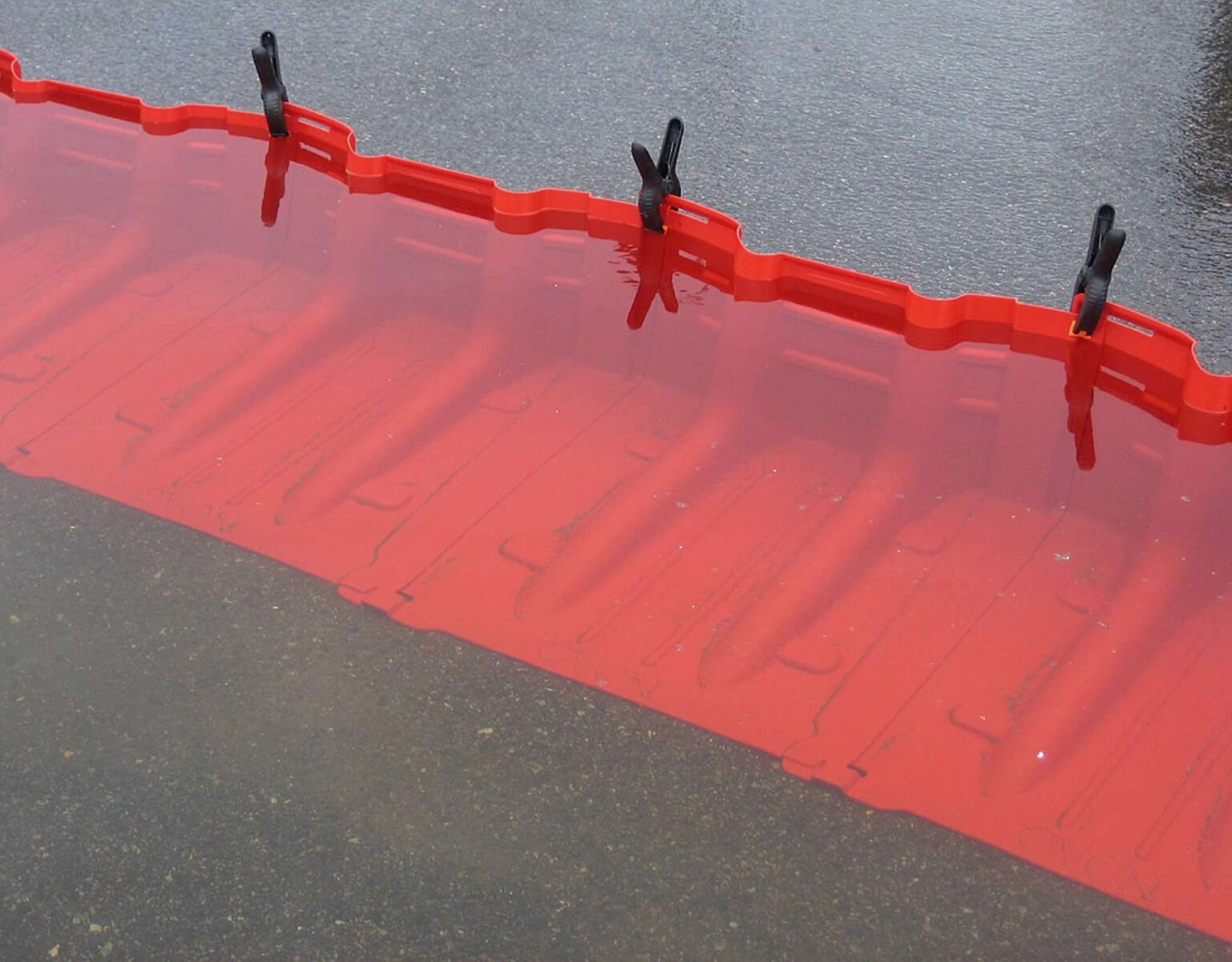

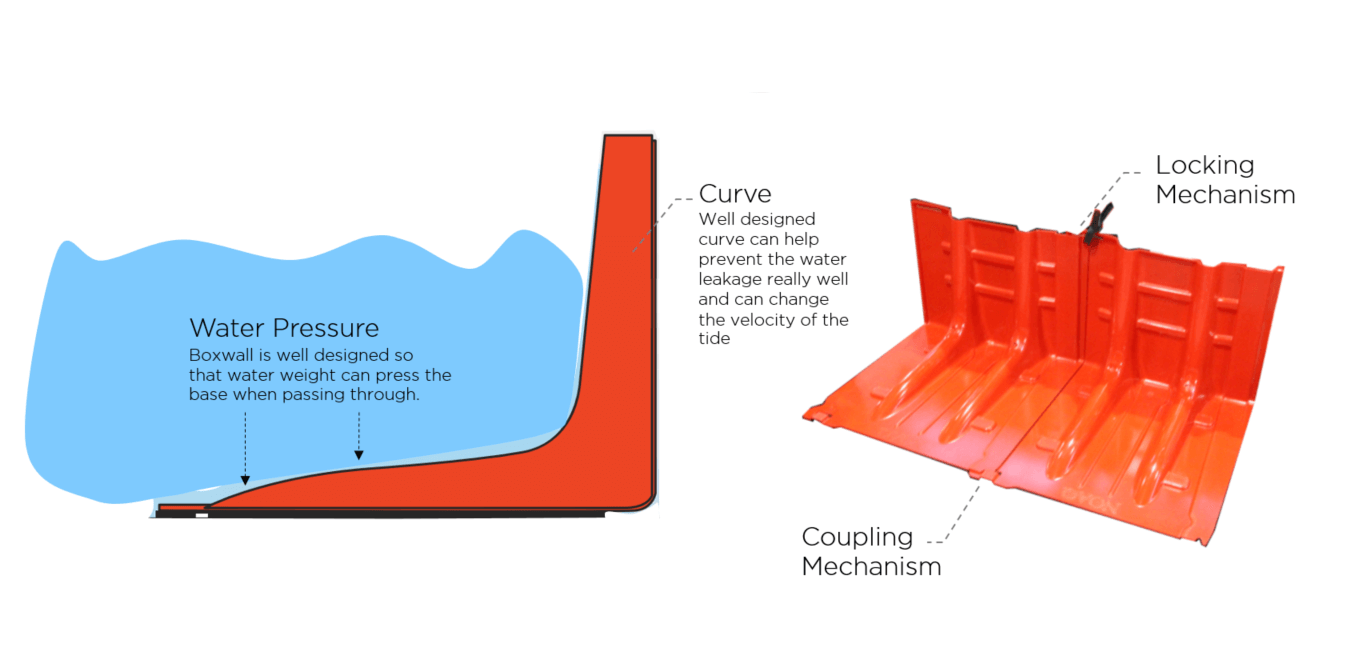

How Boxwall Works

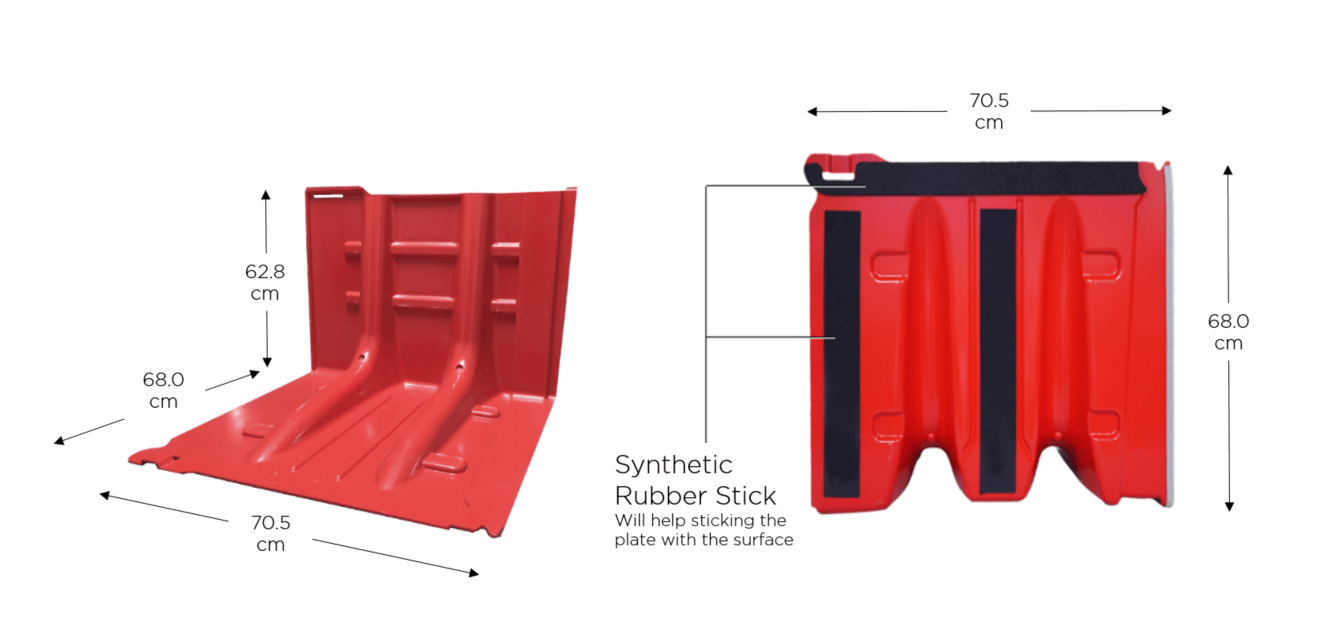

Dimensions
