Isolation Procedure

1. Objective

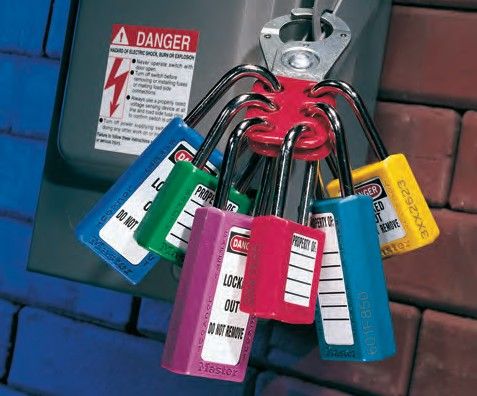

This procedure describes the process used for electrical and mechanical isolations, to ensure all electrical and mechanical work is carried out in a safe manner with appropriate controls in place.
The primary objective of isolating the equipment is to avoid machinery being accidentally started or systems accidentally powered during repair and maintenance – no matter how small the job is – and no matter how short time the job is going to take. The systems must be isolated before the commencement of work that involves contact with moving or powered components.
This procedure defines the circumstances where isolation as a minimum is required. If isolation is required by law, contract terms and conditions, or if deemed appropriate by the responsible supervisor or the staff assigned for the job, such requirements are complied with.

2. Responsibility

Role
Responsible Supervisor
Responsibility
The Responsible Supervisor has overall responsibility for the implementation of this procedure.
Responsibilities:

• Approves Isolation

• Ensuring that only authorized personnel to perform the role of Isolator

• Ensures that only authorized equipment is isolated

• Ensuring that all isolations are approved and documented according to PTW procedure.

Position

• Rig Manager (days)

•  Night Tool Pusher (nights)

Role
PTW Holder
Responsibility
A person who applies for PTW and executes or supervises the work.
Responsibilities:
The Person Performing the Work is responsible to ensure that only work in accordance with the description on the Isolation Certificate is performed. The Person Performing the Work works under the direction of the Isolator when breaking containment and fitting isolation devices.
Position

• Crew

Role
Isolator
Responsibility
The person performing either Mechanical or Electrical Isolation. Responsibilities:
The Isolator is responsible for the specification, application, removal, and recording of Mechanical Isolations. He must demonstrate to the PTW Holder that isolations have been carried out successfully and are secure.
Position

• Electrician Mechanic

Role
PTW Administrator
Responsibility
The person who is responsible for the administration of all the works covered by PTW. PTW Administrator is a focal point between all affected parties.
Responsibilities:

• Maintains PTW Board

• Maintains PTW Register

• Maintains RA Register

• Administers Isolation Certificates

• Quality checks PTW on a daily basis

Position

• Admin

3. Procedure

The Isolation Certificate must be applied for together with a Work Permit. Isolation flowchart to be used for the process
0.1. Applying for an Isolation Certificate

• The Applicant accesses the Isolation Certificate via the Work Permit form.

• The Applicant fills in the sections:


  • Isolation Certificate

  • Requesting Isolation

  • Isolation in Force Electrical/Mechanical.

0.2     Approving an Isolation Certificate
Unit Manager will review the proposed application and approve the Isolation Certificate
0.3     Execution of Isolation
The Isolator performs the isolation as required in the Isolation Certificate in accordance with PDO Isolation requirements.
0.4     Completion of Work
Authorization to remove isolations will not normally be granted until all associated work permits have been canceled and the worksite returned to the normal safe operating condition.

• PTW Holder fills Isolation Certificate to permit the Isolator to remove Isolation.

• Isolator removes Isolation and fills the IC.

• The Work Permit Administrator files the original of the IC.

0.5       De-isolation for Test
There are occasions when it may be preferred to fully or partly de-isolate before the permit is canceled, to do a planned and controlled test, e.g. leak test or test of motor rotation, rather than cancel and re-issue the permit and all associated isolations.

• The sequence of the de-isolation and re-isolation must be carefully planned and recorded on a step-by-step procedure.

• The planning shall be backed up by a thorough risk assessment.

• Each de-isolation and re-isolation must be recorded on the Isolation Certificate.

0.6      Extended term Isolation
When isolation becomes long term isolation then the following conditions apply:

• Where equipment has to be taken out of service due to repair or replacement

• Where there is no current PTW

• When it is identified on the latest PTW that the equipment has not been de-isolated.

The reason for the long-term Isolation must be stated on the certificate.
Long-term Isolation Certificates must be checked validated and initialized by the Responsible Person at intervals not exceeding 7 days.
Long-term isolations shall only be authorized for 3 months maximum. At the end of this period, the certificate will be signed off and the isolation will be checked by the Isolator to confirm both the requirement for continued isolation and that the isolation is still effective. A new EPI IC will then be filled and duly signed.
A copy of the EPI IC is to be kept in a designated binder when no work is carried out on the isolated equipment.

4. Definitions & Abbreviations

In this procedure, the following terms have the specific meaning described in this section.
ICI   solation Certificate
EPI    Extended Period
Isolation: Physical separation or disconnection with one or more barriers of a power source i.e. pneumatic, liquid or electrical.

5. Flowchart

6. Documentation & Records

• F-23 – Isolation Certificate
